Three-Phase Oil-Immersed Distribution Transformers

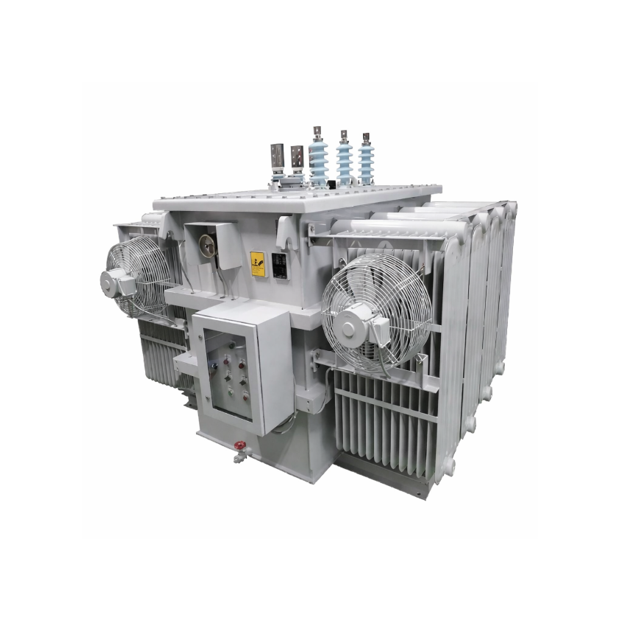

Three-Phase Oil-Immersed Distribution Transformers

Compact size with corrugated tank design results in less weight and smaller installation footprint.
Three-Phase Oil-Immersed Distribution Transformers
/
DETAIL
Distribution Transformers
Three-Phase Oil-Immersed Distribution Transformers
PRODUCT FEATURES · SPECIFICATIONS · OPTIONAL ACCESSORIES
Product Features
  • Compact size with corrugated tank design results in less weight and smaller installation footprint
  • High grade of cold-rolled and grain-oriented steel (CRGO) or amorphous core is adopted reducing the core loss dramatically
  • Customized and optimized designs meet or exceed the requirements of international standards
Specifications
Capacity Single-phase up to 1,000 kVA; three-phase up to 6,300 kVA
Voltage Up to 36 kV
Frequency 50 or 60 Hz
Insulation Class A class
Core Material CRGO or amorphous ribbon
Insulating Oil Mineral, high fire-point mineral or ester base oil
Standard IEC, IEEE or specified by customers
Three-Phase Oil-Immersed Distribution Transformers
Optional Accessories
  • Wheels
  • Cable box
  • Cooling fans

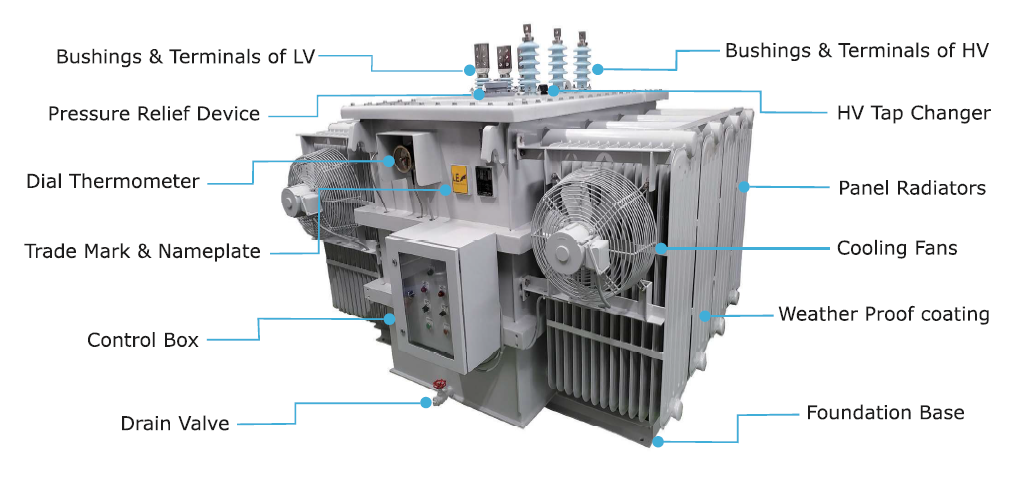

Three-phase oil-immersed distribution transformer
Looking for distribution transformers that meet IEC, IEEE or specified by customers?
