25kV 600A Splices
MEDIUM-VOLTAGE SEPARABLE SPLICES FOR HARSH ENVIRONMENTS

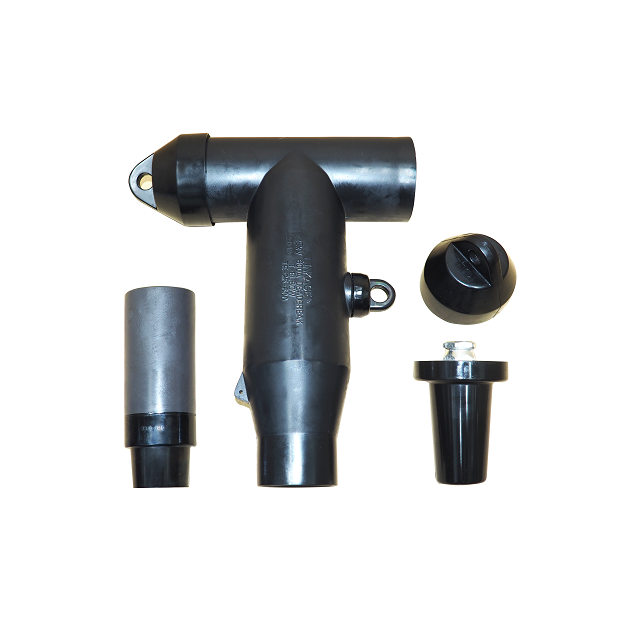

LINKAGE 25 kV 600 A Non-Loadbreak Elbow Connector is designed for underground cable termination and tap connections, and is suitable for applications such as transformers, switchgear, and ring main units (RMUs). The product provides a safe and highly reliable connection solution. Its elbow connector design fully complies with IEEE 386 standards and is compatible for use with other products conforming to IEEE 386.
The connector features a semi-conductive shielding layer on the exterior, enabling reliable operation under fully submersed conditions. The associated insulated connector is equipped with a built-in test point, allowing users to measure circuit voltage through the test port. An optional external voltage test point is also available to support the installation of fault indicators or for line condition monitoring.
The connector features a semi-conductive shielding layer on the exterior, enabling reliable operation under fully submersed conditions. The associated insulated connector is equipped with a built-in test point, allowing users to measure circuit voltage through the test port. An optional external voltage test point is also available to support the installation of fault indicators or for line condition monitoring.
