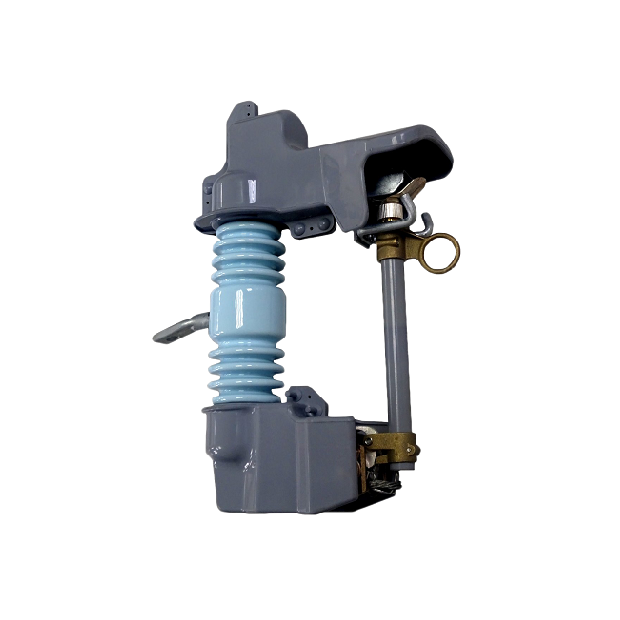

LPI-11.4-002 Fuse Cutout
11.4 KV · 100A · ARC-QUENCHING DROP TYPE
Specifications
| Type | LPI-11.4-002 |
|---|---|
| Rated Current (A rms) | 100 A |
| Rated Voltage (kV rms) | 7.8 / 15 |
| Rated Frequency (Hz) | 60 |
| Interruptive Current (asym) at 7.8 kV (kA) | 10 |
| BIL (kV) | 95 |
| Total Mass (kg) | 7.2 |
LPI-11.4-002 is a cover-protective fuse cutout developed by Linkage Electric, suitable for rainy, humid, and island-type climates. It is a one-way, arc-quenching, drop-type fuse cutout designed for 11.4 kV three-phase multiple-grounding distribution systems.
The electrical performance complies with the IEEE C37 series and Taipower Company Standard C018 (102-05) for 11.4 kV 100A applications. This fuse cutout provides dependable protection for transformer overloads, line faults, and abnormal operating conditions in overhead distribution networks.
Optional silicon-polymer insulated protective covers can be installed on the upper and lower terminals to reduce failure risks caused by external impacts such as wildlife, vegetation, pollution, and airborne debris. These covers enhance dielectric protection without affecting the mechanical or functional characteristics of the fuse cutout.
The basic electrical characteristics of the LPI-11.4-002 are shown in the specification table above, making it a robust and field-proven protection device for utility and industrial distribution systems.
The electrical performance complies with the IEEE C37 series and Taipower Company Standard C018 (102-05) for 11.4 kV 100A applications. This fuse cutout provides dependable protection for transformer overloads, line faults, and abnormal operating conditions in overhead distribution networks.
Optional silicon-polymer insulated protective covers can be installed on the upper and lower terminals to reduce failure risks caused by external impacts such as wildlife, vegetation, pollution, and airborne debris. These covers enhance dielectric protection without affecting the mechanical or functional characteristics of the fuse cutout.
The basic electrical characteristics of the LPI-11.4-002 are shown in the specification table above, making it a robust and field-proven protection device for utility and industrial distribution systems.
